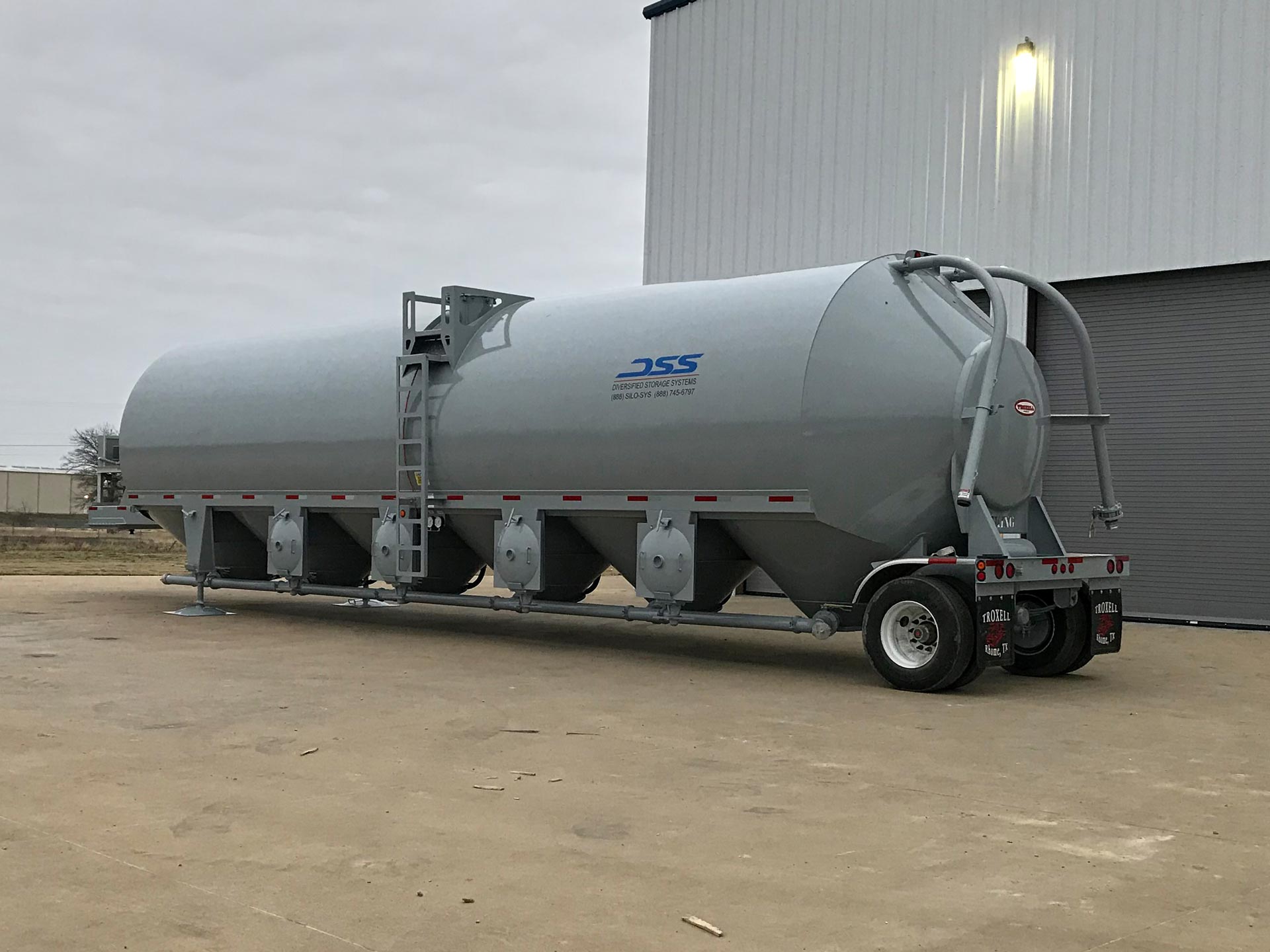

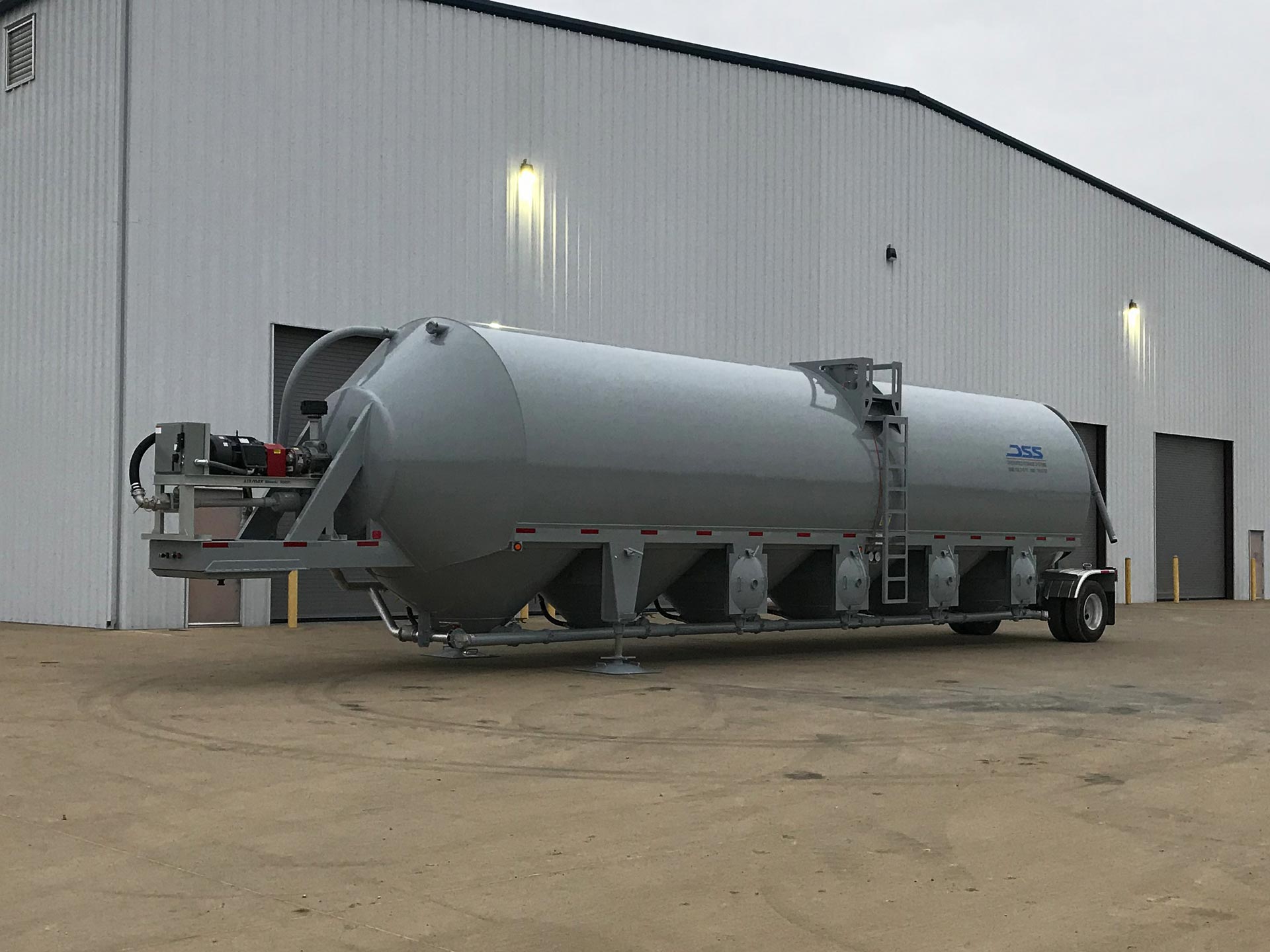

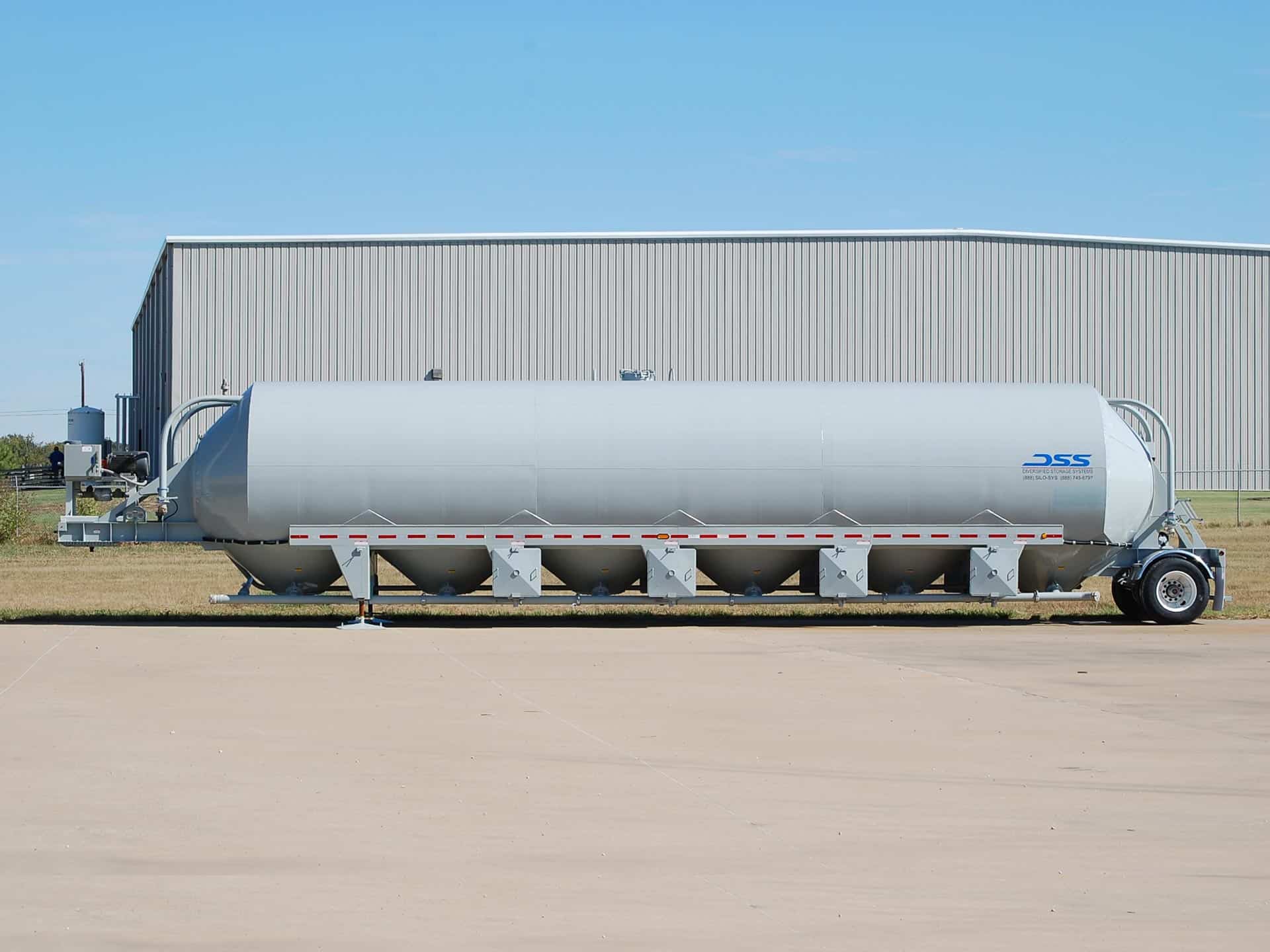

Guppy 4200
Guppy 4200 Specifications
Standard features
- 4100 cubic foot shell
- Single compartment, 6 hoppers
- Steel exterior with internal bracing
- 15 PSI operating pressure
- 6-30” fiber pads w/gasket
- 20” manhole
- Pressure relief valve set at 13 PSG
- I4” fill line in front
- 4” vent line in back
- 5” discharge at rear
- 6” steel sch 40 pipe manifolding
- 6” butterfly valves with outlets
- 3” air supply line with check valve
- 3” butterfly valve
- 2” air control valves for each hopper

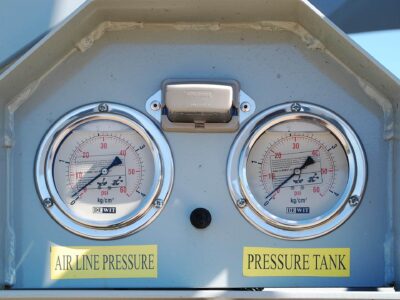

- 2–4” dial 0-30, gauges for tank & line pressure
- 5th wheel trailer set up with air brakes, running lights
- Prime and painted DSS Grey
Optional additional features
- Blower mounted on front-diesel or electric
